Add/Remove Functions to the Application

To configure the application, you need to select and order the functions. This page describes the general overview for configuring the application. See the 'Description of Each Function' section for more information on individual functions.

1. Switch to the Admin Mode in the RSI portal site.

2. Go to Application Settings.

3. Select the application to edit that you have already created. If you have not yet created the application, refer to the page Add/Edit/Move/Duplicate/Delete Application.

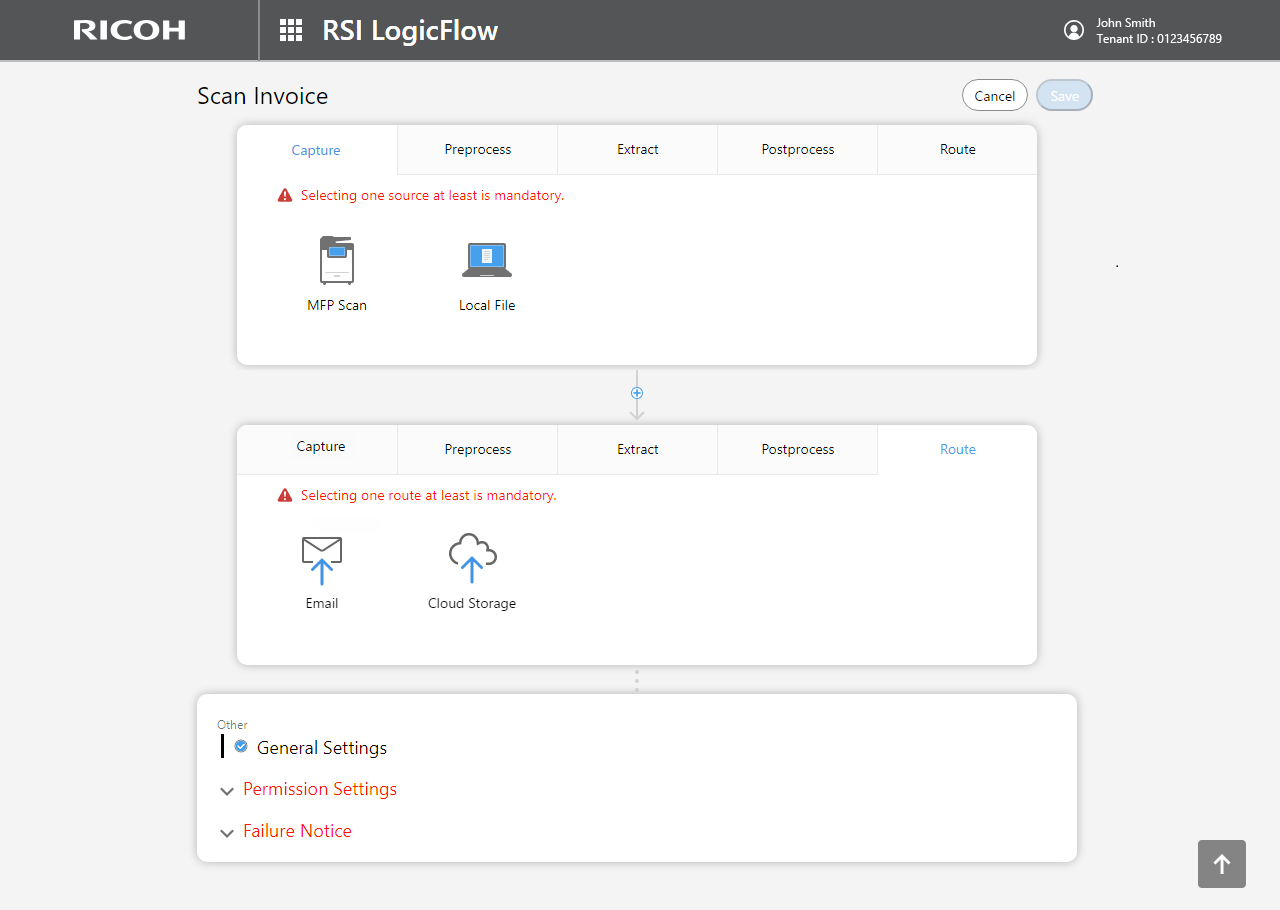

4. If you are setting up for the first time, you will see two function selection menus and a General Settings window. In this screen you need to select and order the functions needed to configure your application. The two function selection menus are opened beforehand to select the Source and Route respectively. In the function selection menu each function is grouped in tabs (Source/Preprocess/Extract/Postprocess/Route). See the Description of Each Function section for more information on the individual function groups.

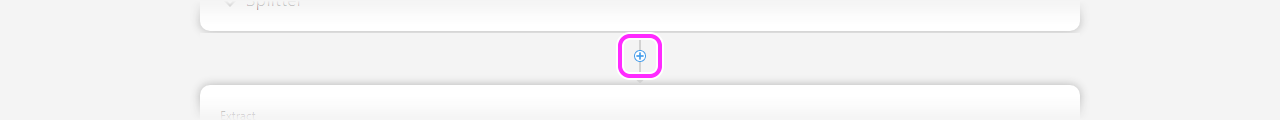

5. To add more functions, click on the '+' button to open a new function selection menu. In general, a function will be added where the '+' button is clicked, but if it deviates from the order of the tab groups, it will automatically be reordered.

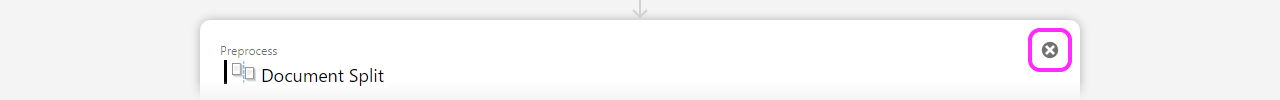

6. To remove a function, click on the 'x' button that appears in the top right-hand corner when hovering over the function.

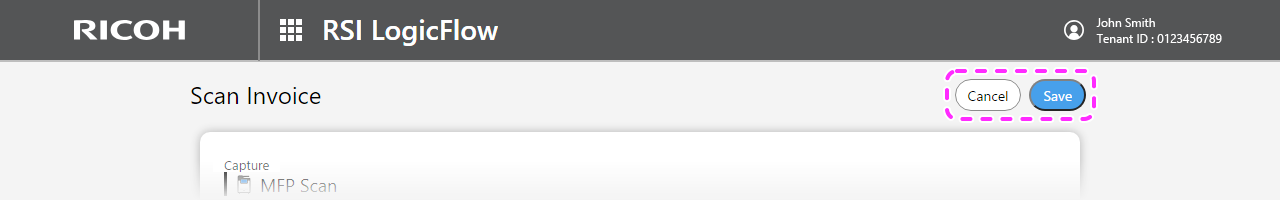

7. When you have finished setting up, press the Save button to save the configuration. Click Cancel button to discard the changed settings. If any of the mandatory setting items have not been set, the Save button is disabled. Mandatory items that have not been set are displayed in red. Make sure that all mandatory settings have been configured.
